Perforated Cable Trays
Our perforated cable trays provide excellent ventilation and heat dissipation for your cables, ensuring optimal performance and longevity.

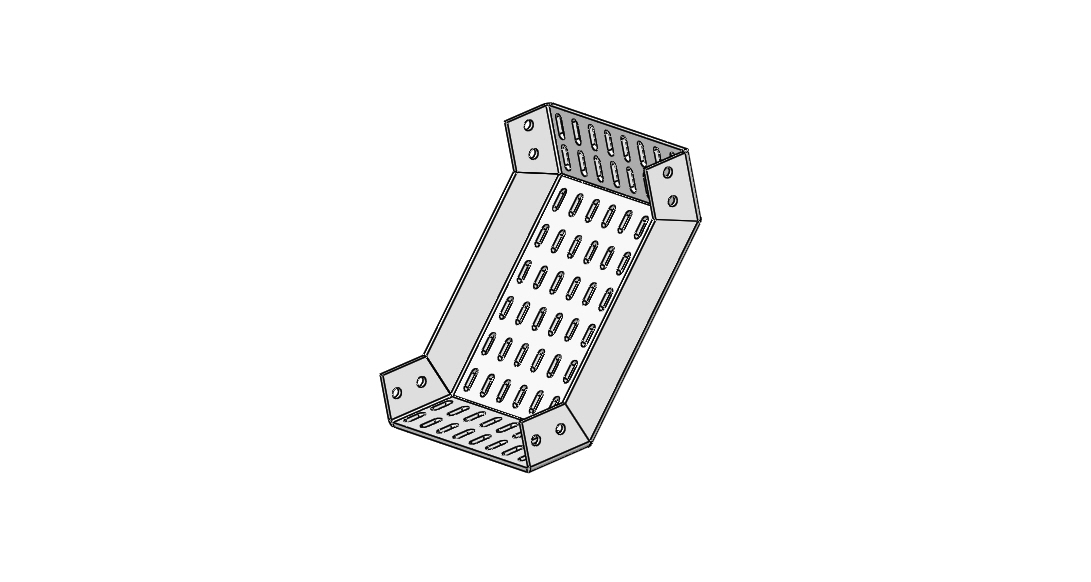

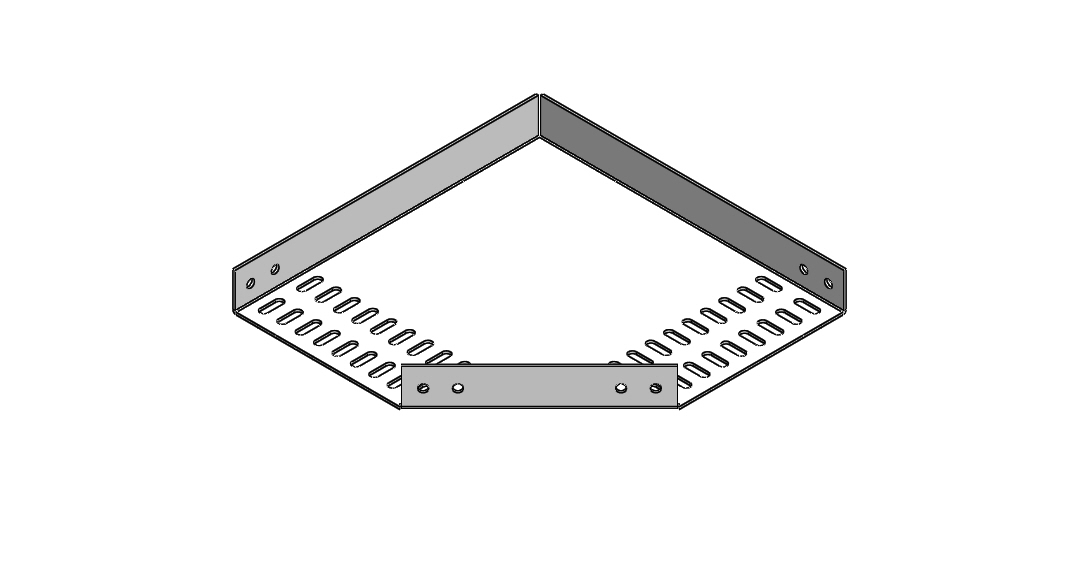

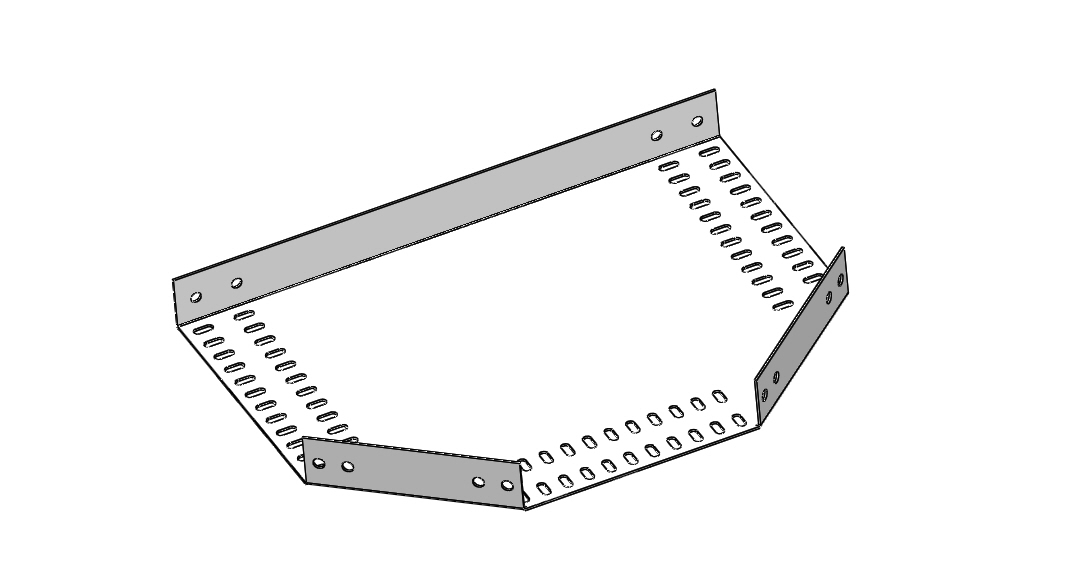

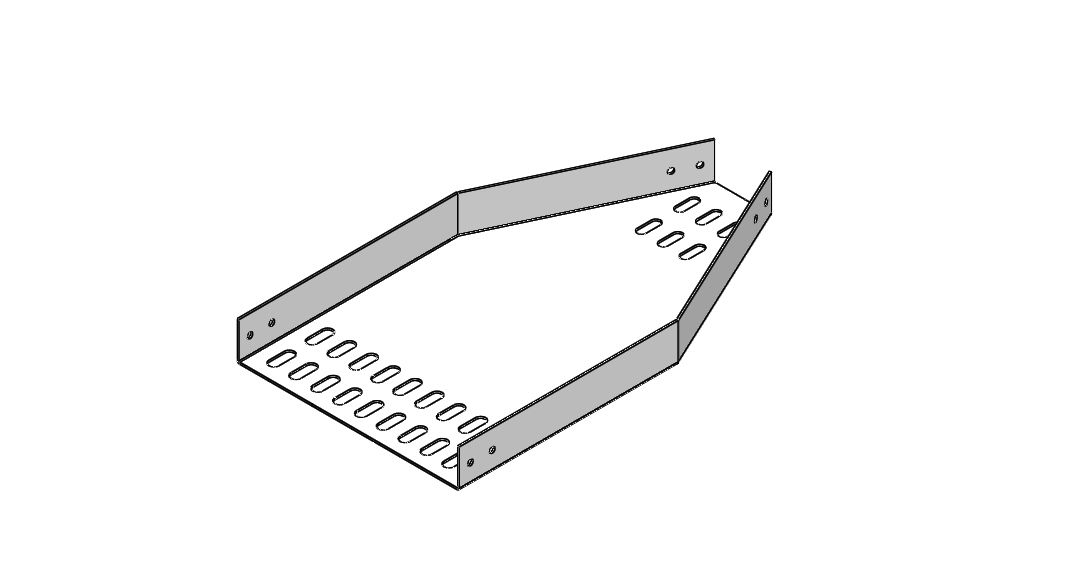

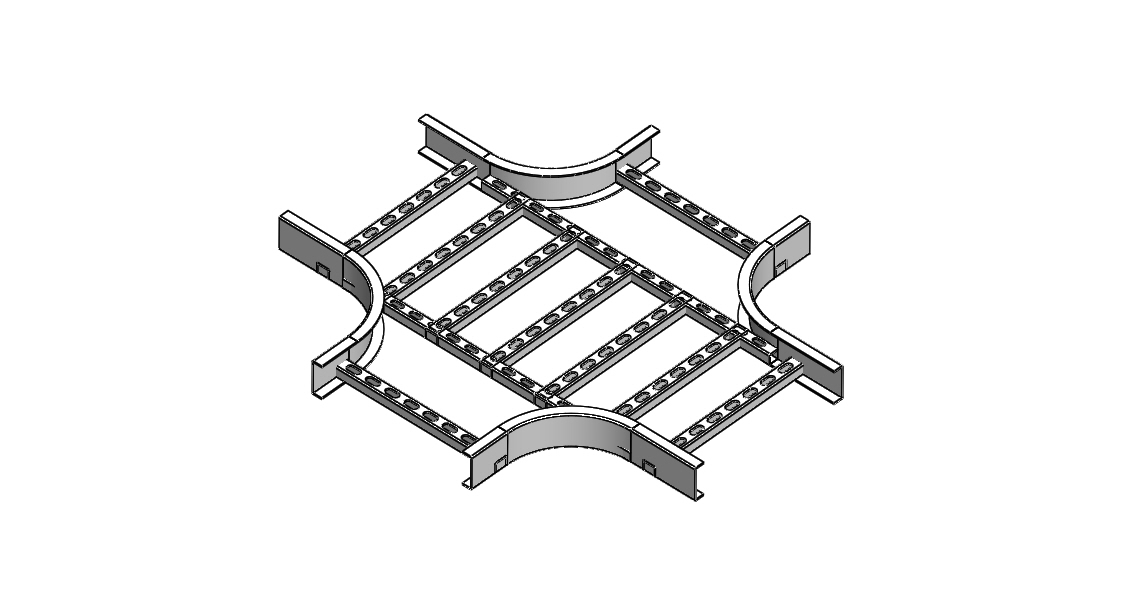

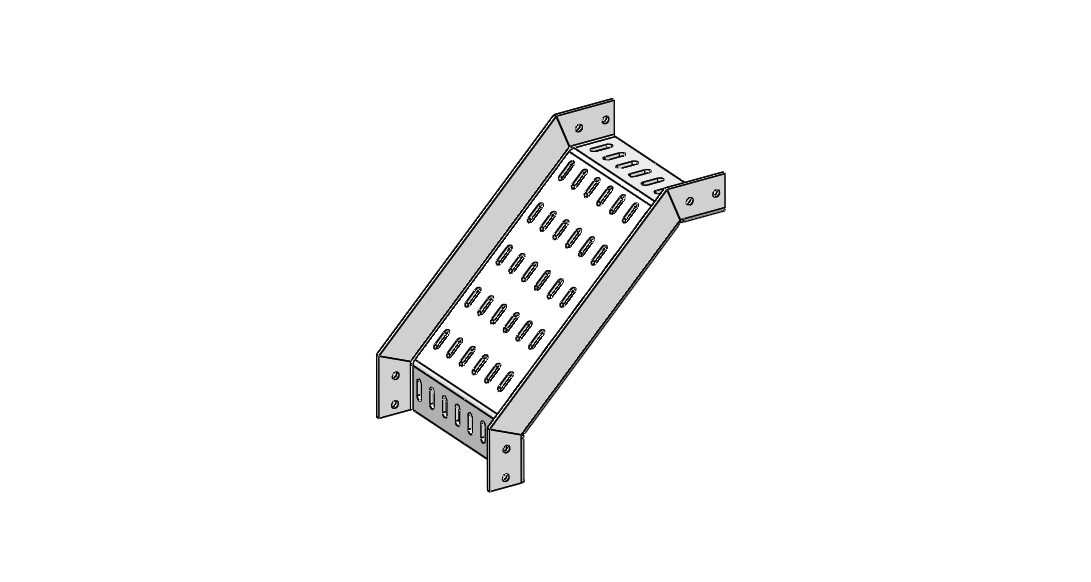

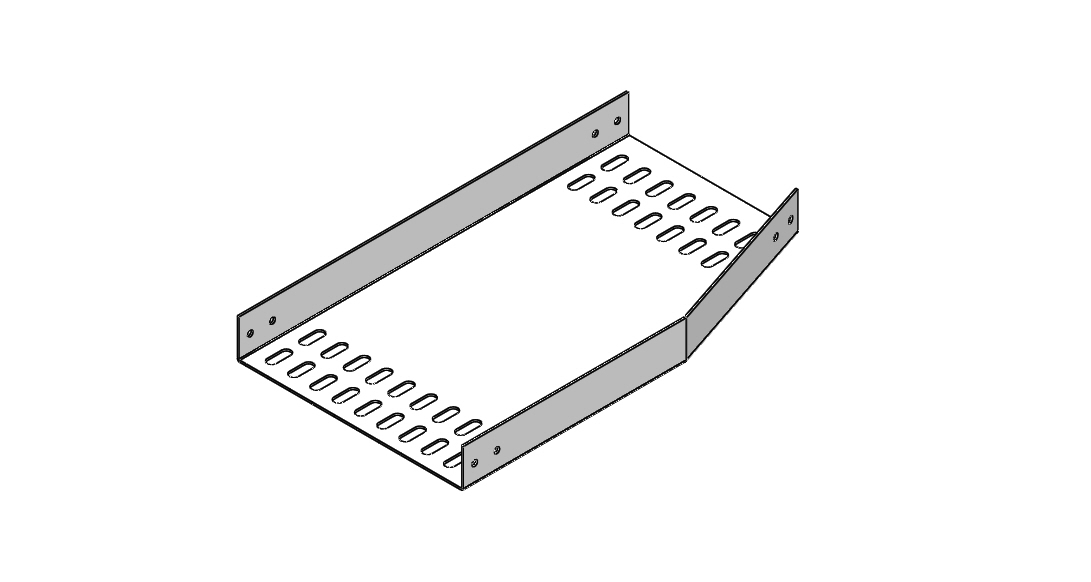

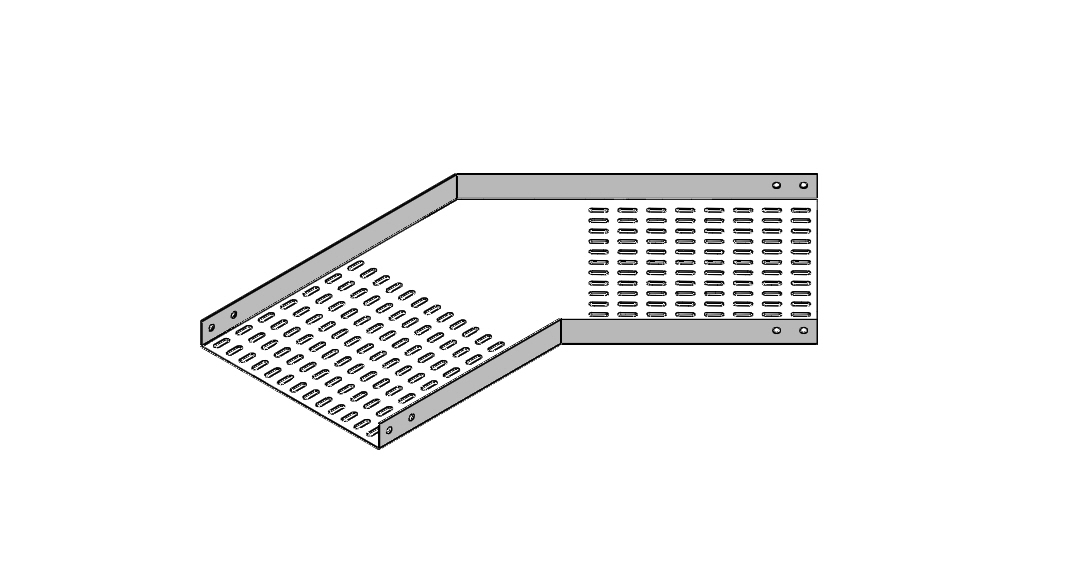

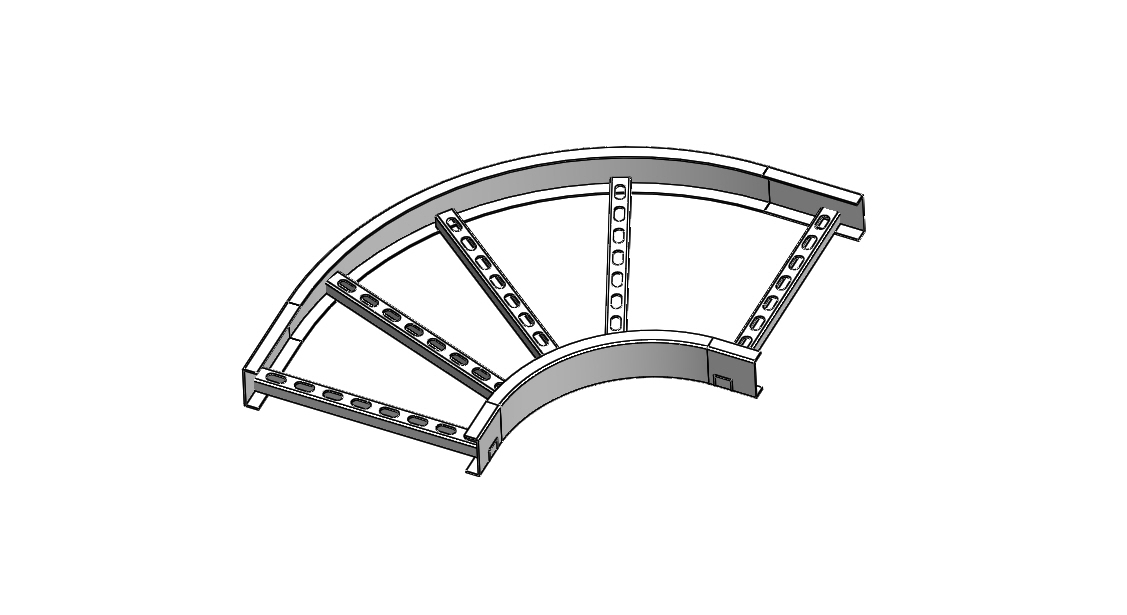

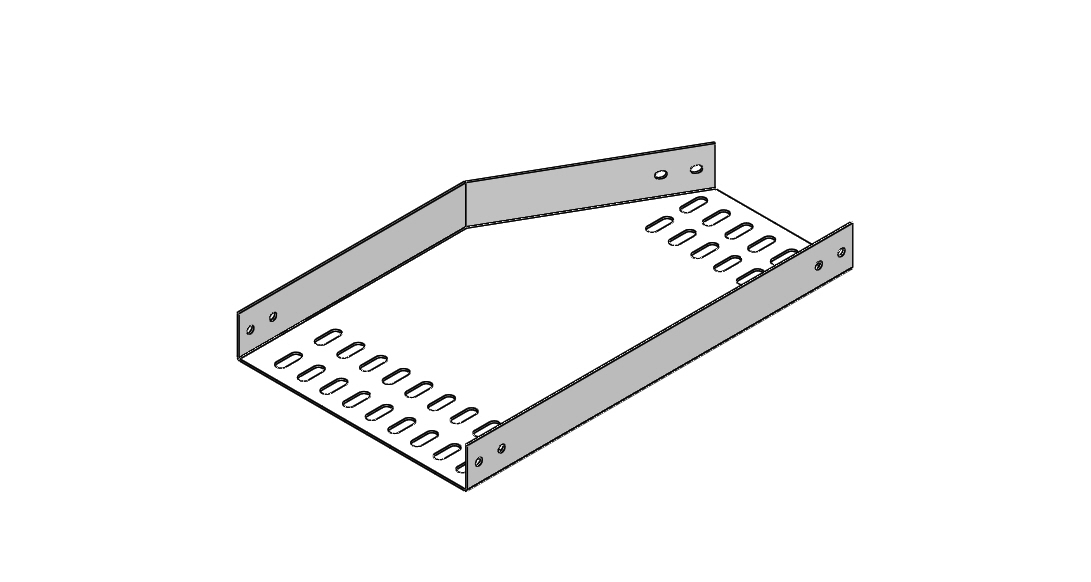

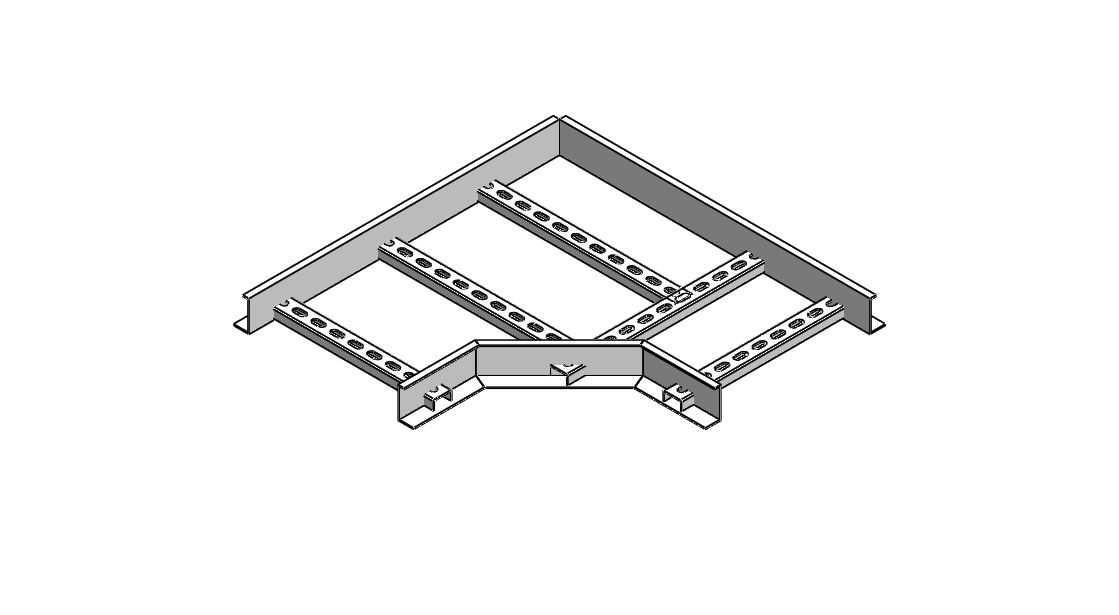

Accessories

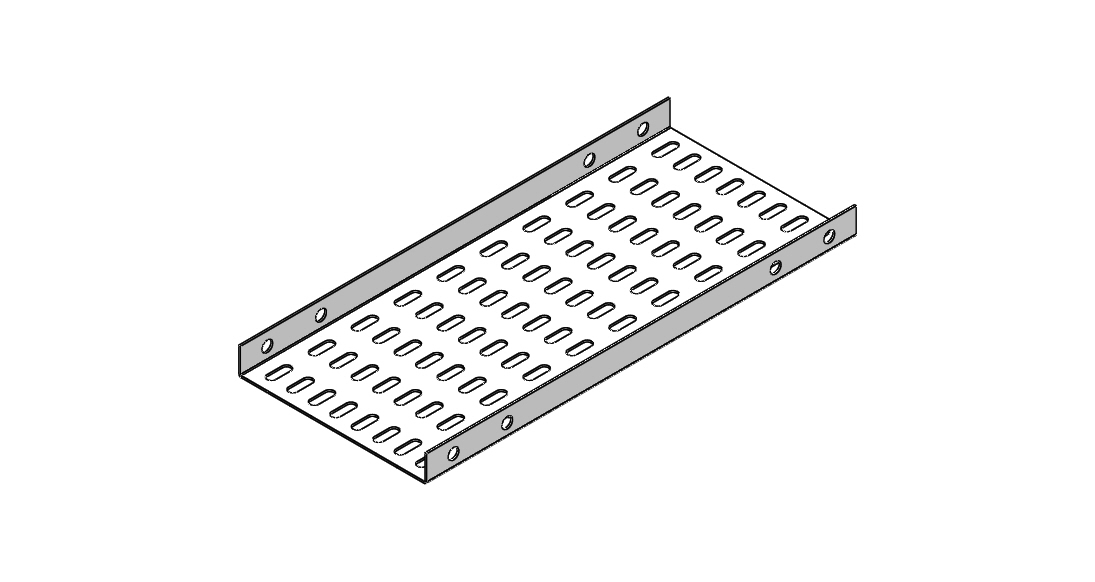

Perforated Cable Trays
A Perforated cable tray is a prominent category of cable tray that comes with holes in the bottom sheet and side rails, used for laying power and signal cables. Perforated cable trays have a strong structure that allows them to carry multiple cables of different types. These come with smooth edges that protect the wires from getting scratched. The cable trays are strong enough to withstand short circuits.The perforated cable trays are used to distribute electricity in departmental stores, airports, hospitals, and gyms. Perforated cable trays are flexible and easy to install. Overall, the maintenance is also low.
Key Features
- Comes up with seamless designs.
- The trays are durable and reliable.
- Comes in loaded specifications
- Ideal for handling high pressure
- Stackable design for space efficiency
- Easy to Maintain
Technical Specifications
Material: Pre-galvanized steel, Hot-dip galvanized steel, Stainless steel
Width Range: 50mm to 600mm
Height Range: 50mm to 100mm
Length: 2.5m standard (custom lengths available)
Load Capacity: Up to 75kg/m depending on configuration
Finish Options: Pre-galvanized, Hot-dip galvanized, Powder coated, Stainless steel
Perforation Pattern: Standard 10mm diameter holes at 20mm centers
Compliance: NEMA VE 1, IEC 61537, BS EN 61537
Technical Specifications
Material Finish Options
| S.No | Material Finished | Specifications | Recommended |
|---|---|---|---|
| 1 | Pre-Galvanized | As Per Specifications | Indoor |
| 2 | Hot - Dip Galvanized | As Per IS 4759,2629, 2633 | Indoor & Outdoor |
| 3 | Powder Coated | As Per Specifications | Indoor |
| 4 | Stainless Steel | As Per Specifications 304, 316. | Indoor & Outdoor |
| 5 | Aluminum | As Per Specifications | Indoor |
Note:
- • R means regular sizes which used in the market
- • NR means not regular size production is done as per customer requirement
- • NA it means Not Available or likely to be used in the market but as per customer requirement, we supply.
Width of Cable Trays
| S.NO | Thickness | Depth | 50 | 100 | 150 | 200 | 300 | 450 | 500 | 600 | 750 | 900 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1.6 mm | 25 MM | R | R | R | NR | R | NR | NR | NR | NR | NR | NR | NR |
| 2 mm | R | R | R | NR | NR | NR | NR | NR | NR | NR | NR | NR | ||
| 2.5 mm | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | |
| 3 mm | Based on Customer Requirement | |||||||||||||
| 2 | 1.6 mm | 40 MM | NR | NR | NR | NR | NR | NR | NA | NA | NR | NR | NR | NR |
| 2 mm | NR | NR | R | R | R | R | NR | R | NR | NR | NR | NR | ||
| 2.5 mm | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | |
| 3 mm | Based on Customer Requirement | |||||||||||||
| 3 | 1.6 mm | 50 mm | NR | NR | R | NR | R | NR | NA | NR | NR | NR | NR | NR |
| 2 mm | NR | NR | R | R | R | R | NR | R | NR | NR | NR | NR | ||
| 2.5 mm | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | |
| 3 mm | Based on Customer Requirement | |||||||||||||
| 4 | 1.6 mm | 75 mm | NR | NR | NR | NR | NR | NR | NA | NR | NR | NR | NR | NR |
| 2 mm | NR | NR | NR | NR | R | R | NA | R | NR | NR | NR | NR | ||
| 2.5 mm | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | |
| 3 mm | Based on Customer Requirement | |||||||||||||
| 5 | 1.6 mm | 100 mm | NR | NR | NR | NR | NR | NR | NA | NR | NR | NR | NR | NR |
| 2 mm | NR | R | R | NR | R | R | NA | R | NR | NR | NR | NR | ||
| 2.5 mm | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | NR | |
| 3 mm | Based on Customer Requirement | |||||||||||||
