Strut Channel Support System
Our Strut Channel Support Systems are engineered for robust, modular, and flexible support of cable trays, piping, and mechanical systems in industrial and commercial environments.

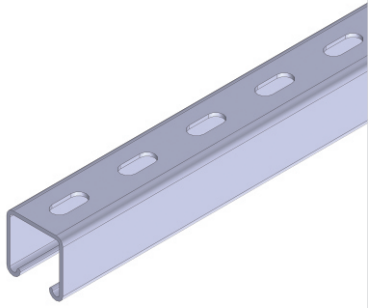

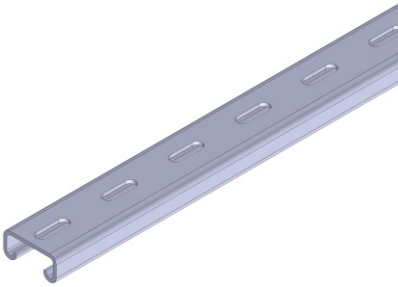

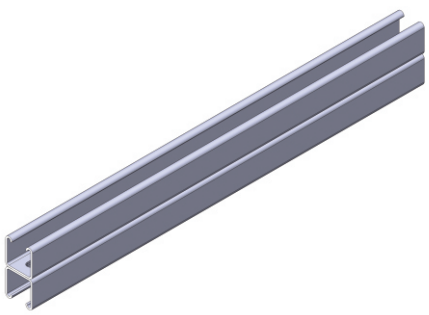

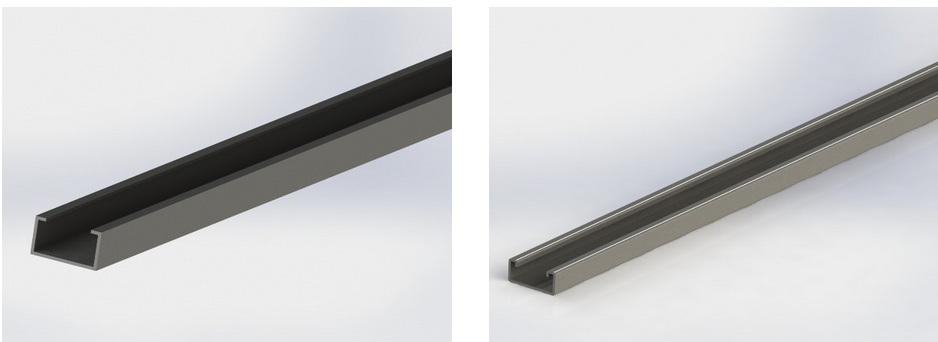

Product Images
Strut Channel Support System
A strut channel is used to brace, mount, connect, and support structural loads that are light in weight. These can include data and electrical wire, pipes, and several mechanical systems like ventilation and air conditioning. NSKS offers you subtle and effective strut channel support systems that can satisfy your needs without any hurdle.
Key Features
- Modular and easy to assemble
- Corrosion-resistant finishes
- High load-bearing capacity
- Compatible with a wide range of fittings and accessories
- Customizable for specific project needs
- Low maintenance requirements
Strut Channel Product Table
| S.No | Section | Thickness(t)mm | Product Name |
|---|---|---|---|
| 1 | 40x20x2/0mm | 2.0mm | C-Strut 4020 Single |
| 2 | 40x20x2/0mm (Welded) | 2.0mm | C-Strut 4020 Double |
| 3 | 41x41x2.5mm | 2.5mm | C-Strut 4141 Single |
| 4 | 41x41x2.5mm (Welded) | 2.5mm | C-Strut 4141 Double |
Technical Specifications
Material: Pre-galvanized steel, Hot-dip galvanized steel, Stainless steel
Channel Sizes: 41x21mm, 41x41mm, 41x62mm, custom sizes available
Length: 3m standard (custom lengths available)
Finish Options: Pre-galvanized, Hot-dip galvanized, Powder coated, Stainless steel
Compliance: BS 6946, DIN 1025, ASTM A653
Technical Specifications
Material Finish Options
| S.No | Material Finished | Specifications | Recommended |
|---|---|---|---|
| 1 | Pre-Galvanized | As Per Specifications | Indoor |
| 2 | Hot - Dip Galvanized | As Per IS 4759,2629, 2633 | Indoor & Outdoor |
| 3 | Powder Coated | As Per Specifications | Indoor |
| 4 | Stainless Steel | As Per Specifications 304, 316. | Indoor & Outdoor |
| 5 | Aluminum | As Per Specifications | Indoor |
Note:
- • R means regular sizes which used in the market
- • NR means not regular size production is done as per customer requirement
- • NA it means Not Available or likely to be used in the market but as per customer requirement, we supply.
