Cable Tray Support System
Robust supports for secure installation of cable management systems.
Product Images
Cable Tray Support System
Key Features
- High load-bearing capacity
- Versatile mounting options
- Corrosion-resistant materials
- Easy installation and adjustment
- Compatible with various cable management products
- Available in multiple sizes and finishes
Major Components of Cable Tray Support System

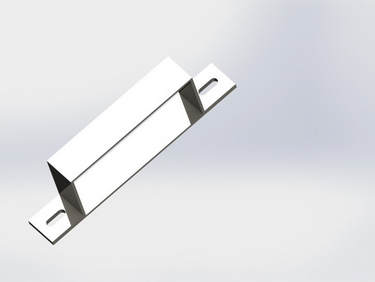

• Clamps
These are used to hold the cables in a cable tray support system. It is a small but important part of the entire system. It provides good grip for holding cables.

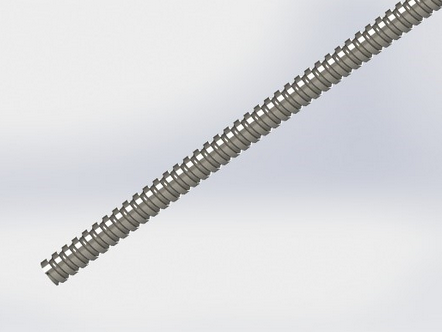

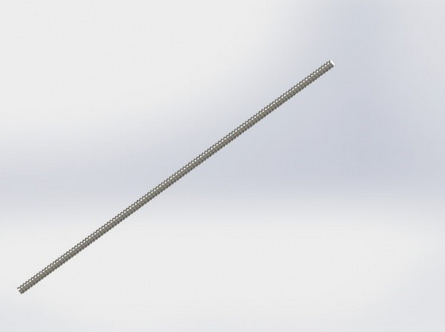

• Threaded Rod
It provides strength and stability to the cable tray support system. These rods are threaded that makes them more stable to hold the grip. Here are the threaded rod dimensions available at NSKS.
| S.No | Product Name | Standard Length (mm) | Thickness (mm) |
|---|---|---|---|
| 1 | Threaded Rod | 1000 | 6 |
| 2 | Threaded Rod | 1000 | 8 |
| 3 | Threaded Rod | 1000 | 10 |
| 4 | Threaded Rod | 1500 | 10 |
| 5 | Threaded Rod | 3000 | 10 |
| 6 | Threaded Rod | 1000 | 12 |
| 7 | Threaded Rod | 3000 | 12 |

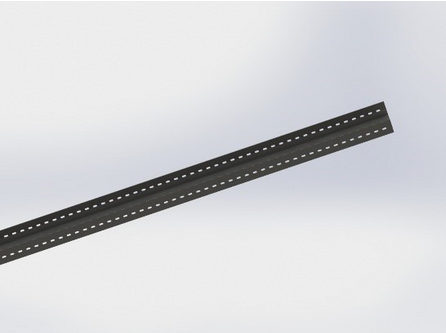

• Slotted Z Section
As its name suggests, it is a z shaped slotted section used in a cable tray support system. It is used as per the requirement in the system. We are offering you the slotted Z section in the given dimensions.
| S.No | Product Name | Section (mm) | Standard Length (mm) |
|---|---|---|---|
| 1 | Slotted Zed Section | 35x30x35x1.6 | 2500 |
| 2 | Slotted Zed Section | 35x30x35x2.0 | 2500 |
| 3 | Slotted Zed Section | 50x40x50x2.5 | 2500 |

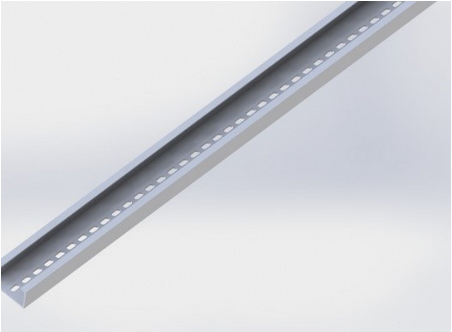

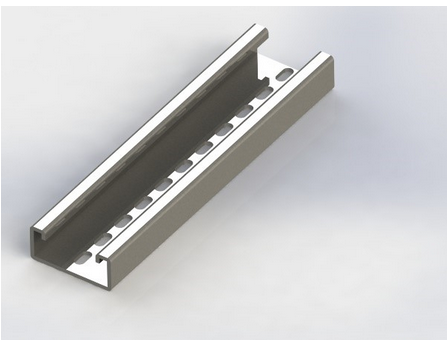

• Slotted C Section
It is a C-shaped slotted section of the cable tray support system and just like the z section, it is also used wherever necessary in the system.
Technical Specifications
Technical Specifications
Material Finish Options
| S.No | Material Finished | Specifications | Recommended |
|---|---|---|---|
| 1 | Pre-Galvanized | As Per Specifications | Indoor |
| 2 | Hot - Dip Galvanized | As Per IS 4759,2629, 2633 | Indoor & Outdoor |
| 3 | Powder Coated | As Per Specifications | Indoor |
| 4 | Stainless Steel | As Per Specifications 304, 316. | Indoor & Outdoor |
| 5 | Aluminum | As Per Specifications | Indoor |
Note:
- • R means regular sizes which used in the market
- • NR means not regular size production is done as per customer requirement
- • NA it means Not Available or likely to be used in the market but as per customer requirement, we supply.
